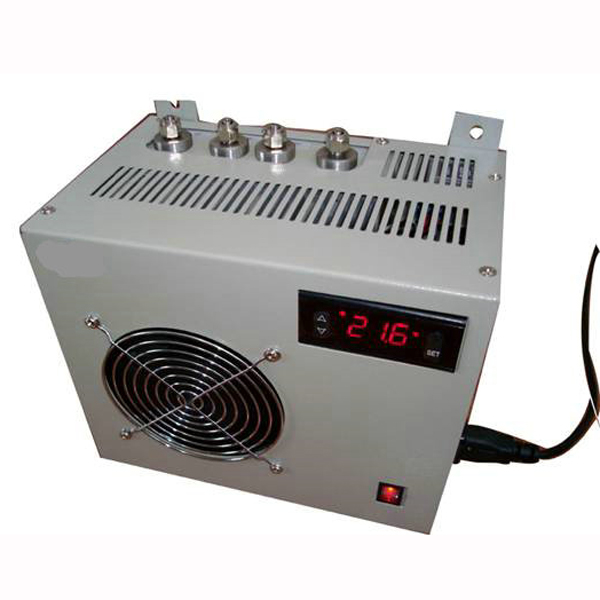

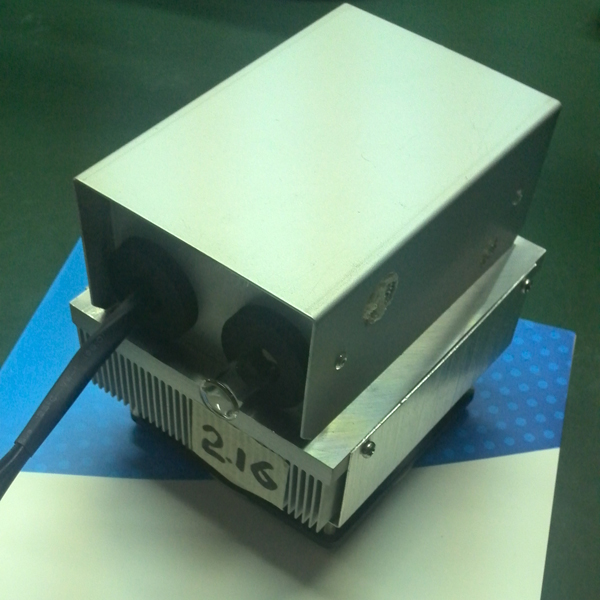

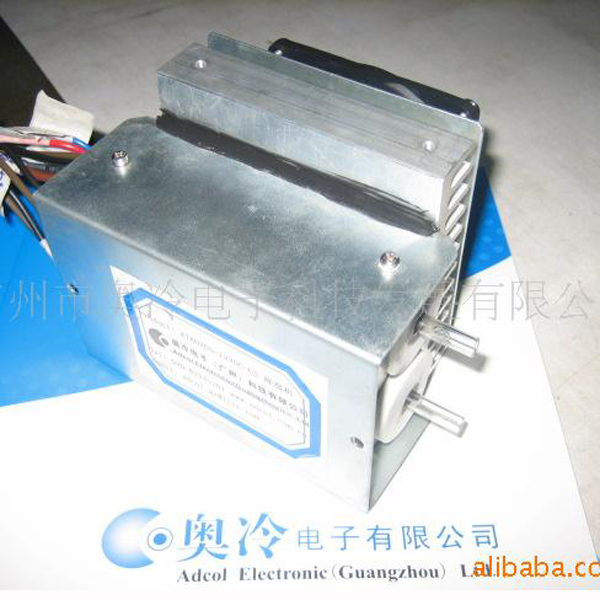

    • Product Name:​ATD050-12-24VDC dehumidifier
    • Number:ATD
    • 分享到:
  • Details
  • ATD050-12-24VDC dehumidifier is designed for gas moisture disposition,it could cool to 67 degree C Below ambient to remove the moisture from the Gas, use glass exchanger for different kind of gas, and it is virtually maintenance-free。Also we could modify the design per custom requirement.。This device is widely used in environment protection, power plant gas detection.

    Model ATD050-12-24VDC-CS(Dehumidifier)



    Spec:


    Part No.

    ATD050-12-24VDC (Dehumidifier)

    TE system

    Air to air

    Cooler Capacity

    50 Wat

    TEC input Vol

    12VDC or 24VDC

    Fan.

    12VDC or 24VDC

    Current Stable

    6A or 3.0 A

    Sensor

    PID PT100

    Gas

    No damage Glass gas

    Ambient Temperature

    0~60 degree C

    Inlet Gas temperature

    0~60 degree C

    Output Gas Dew point

    5~8 degree C to input Gas dew point

    Gas Max Flow

    1.5L/min

    Weight

    Est. 1.4kg

    Dimension

    102.4mm x 150mm x 116mm


    Item

    Connection

    TEC Red wire(+)

    12VDC Positive

    TEC Black wire (-)

    12VDC Negative

    Fan Red wire (+)

    12VDC Positive

    Fan Black wire (-)

    12VDC Negative

    PT100 Sensor Red wire

    Controller

    PT100 Sensor Black wire

    Controller
